Cloth wheels

Call for Price

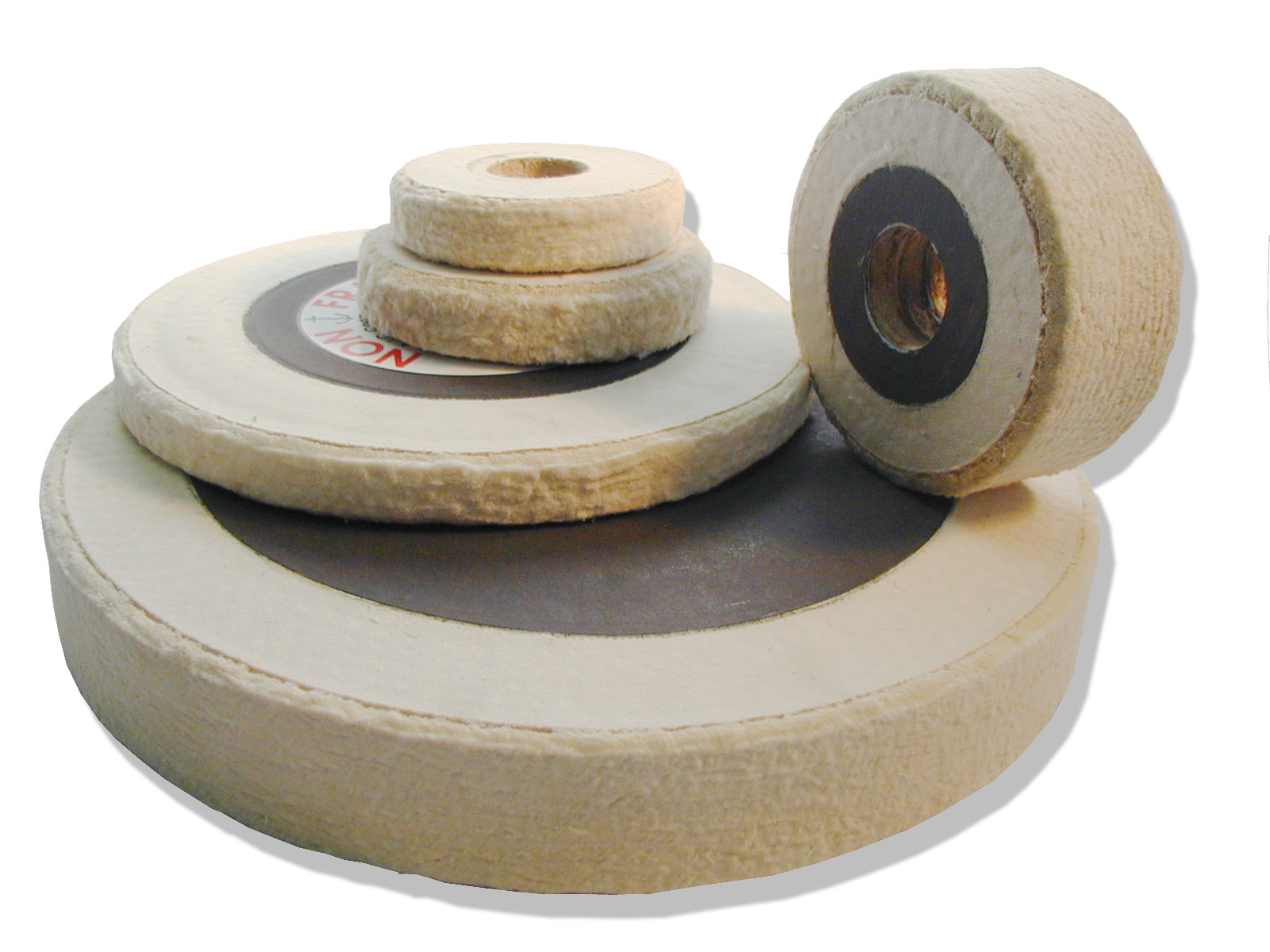

Cloth wheels are most commonly used in conjunction with fine grit-flexible abrasive belts for finishing shaped or contoured parts. Cloth wheels are also a good choice for most fine grit work on a Bader Centerless machine. Please CONTACT US for a quote.

Description

Cloth wheels are available in 4” to 18” OD and ½” to 6” wide.
They are ordered by stating their

  • Dimensions (OD x width)
  • Density: firm (#90) or medium soft (#70)

All standard cloth wheels come with a 1 ½” arbor hole that can be bushed to 1 ¼”. They require the appropriate hub and flanges to attach the wheel to the machine.

  • Lock-in Bearing Hub to fit lock-in fork on Space Saver or Centerless machines

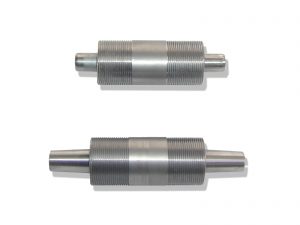

  • Tapered Bearing Hub to fit F-3 fork on Space SaverLock-in bearing hub (above) to fit lock-in fork on Space Saver or Centerless machines and tapered bearing hub to fit F-3 fork on Space Saver
